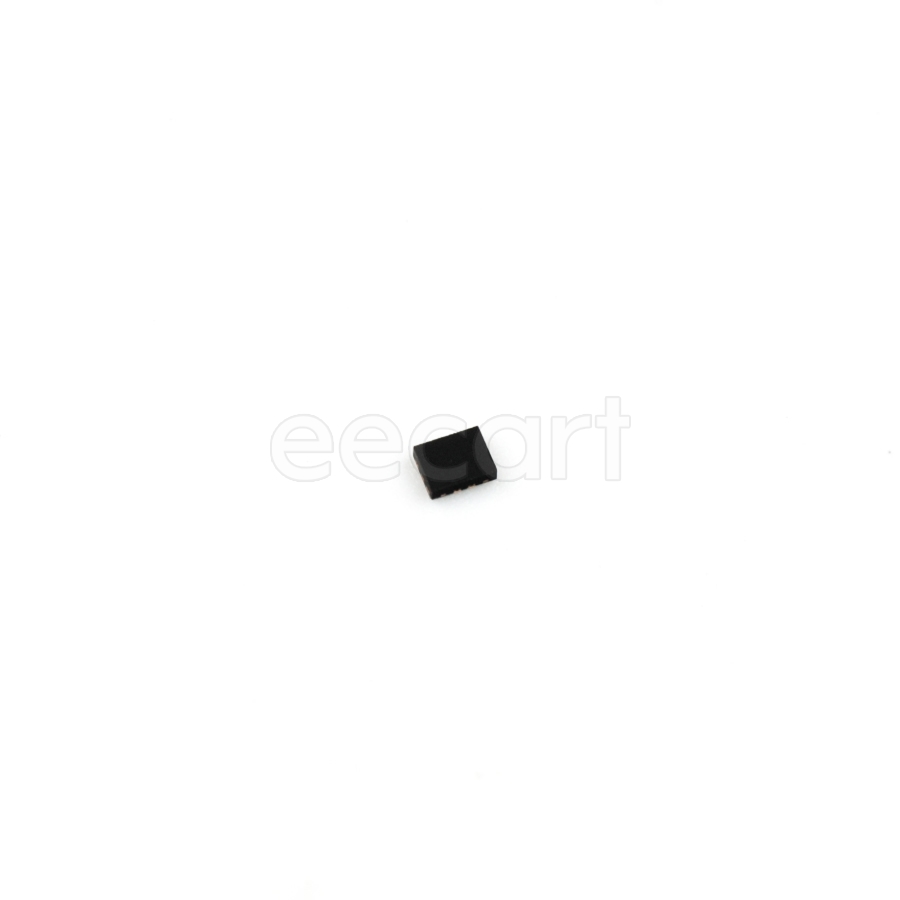

FSUSB42UMX
Manufacturer:
On Semiconductor
Mfr.Part #:
FSUSB42UMX
Datasheet:
Description:
Interface ICs UFQFN-10 SMD/SMT USB 480 Mbps
| Parameter | Value |
|---|---|
| Length | 1.4 mm |
| Width | 1.8 mm |
| Termination | SMD/SMT |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 10 |
| Resistance | 6.5 Ω |
| Height | 500 µm |
| Radiation Hardening | No |
| REACH SVHC | No SVHC |
| Interface | USB |
| Output Current | 100 mA |
| Number of Circuits | 1 |
| Bandwidth | 720 MHz |
| Operating Supply Voltage | 4.3 V |
| Max Supply Voltage | 4.3 V |
| Min Supply Voltage | 2.4 V |
| Ambient Temperature Range High | 85 °C |
| Number of Channels | 1 |
| Turn-On Delay Time | 30 ns |
| Turn-Off Delay Time | 25 ns |
| -3db Bandwidth | 720 MHz |
| Propagation Delay | 250 ps |
| Number of Inputs | 2 |
| Data Rate | 480 Mbps |
| Supply Type | Single |
| Throw Configuration | DPDT |
| Number of Outputs | 2 |
| Nominal Supply Current | 1 µA |
| Number of Ports | 2 |
| On-State Resistance | 3.9 Ω |
| Schedule B | 8542310000 |
| RoHS | Compliant |
| Packaging | Reel |
| Operating Supply Current | 1 µA |
Stock: 7050
Distributors
pcbx
pcbxUnit Price$0.36334
Ext.Price$0.36334
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.36334 | $0.36334 |
| 10 | $0.26674 | $2.66740 |
| 25 | $0.22912 | $5.72800 |
| 50 | $0.21546 | $10.77300 |
| 100 | $0.20262 | $20.26200 |
| 300 | $0.18723 | $56.16900 |
| 500 | $0.17301 | $86.50500 |
| 1000 | $0.15987 | $159.87000 |
| 3000 | $0.15685 | $470.55000 |
| 5000 | $0.15389 | $769.45000 |
| 10000 | $0.15303 | $1530.30000 |
